Novartis Pharmaceuticals Corporation, Building 337

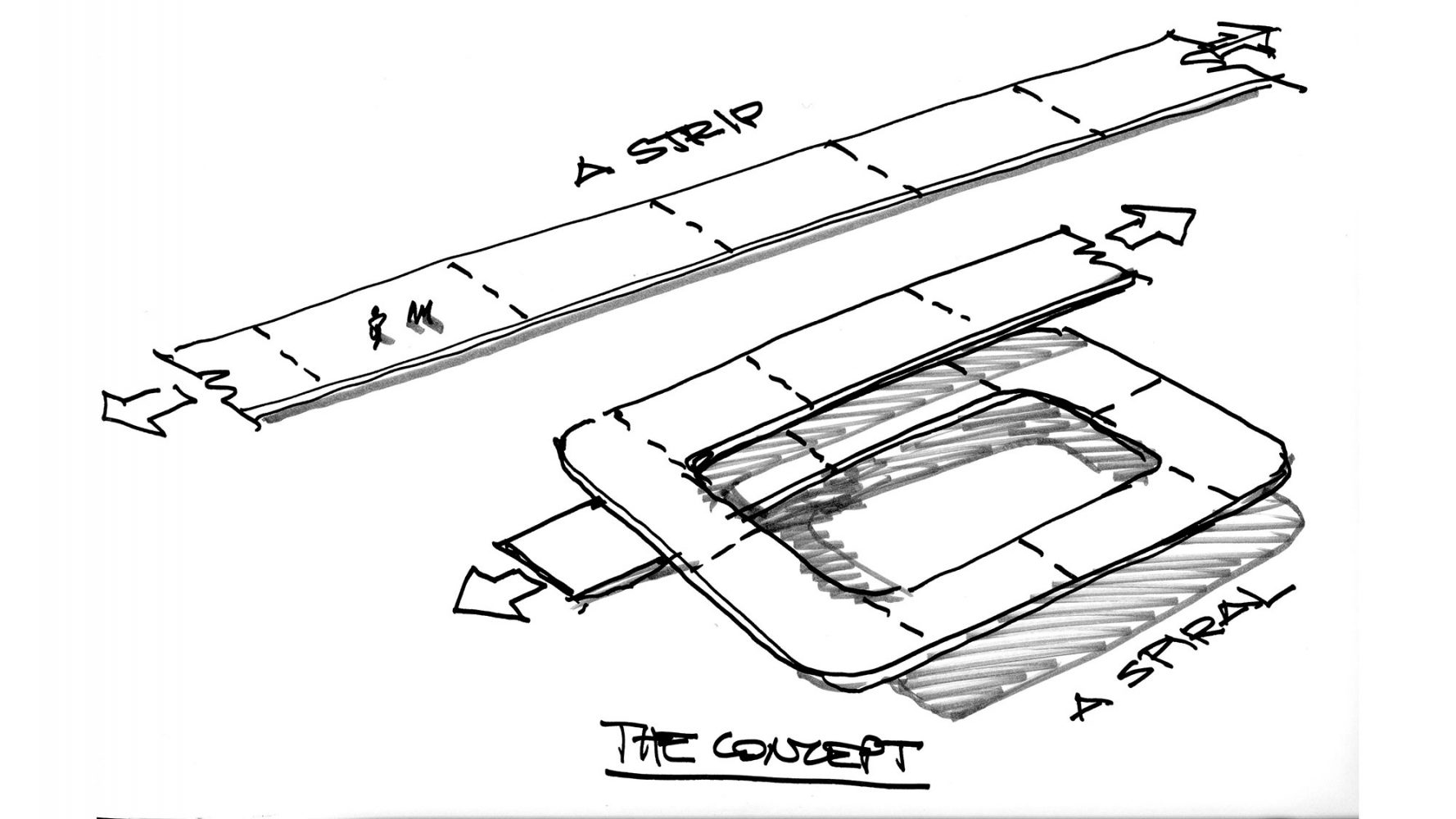

To achieve maximum layout flexibility for a workforce that is constantly in flux, this unique building consists of two continuous workspaces that spiral up and around a central atrium in a double helix arrangement.
Viñoly’s design for Building 337 at Novartis Pharmaceuticals Corporation’s East Hanover, New Jersey campus provides a flexible work environment that equips researchers with the technology necessary to develop cancer treatments. Two continuous workspaces spiral around a spacious central atrium, creating a singular uninterrupted environment that establishes strong connectivity and collaboration between employees, and accommodates the expansion and contraction of research groups over time.

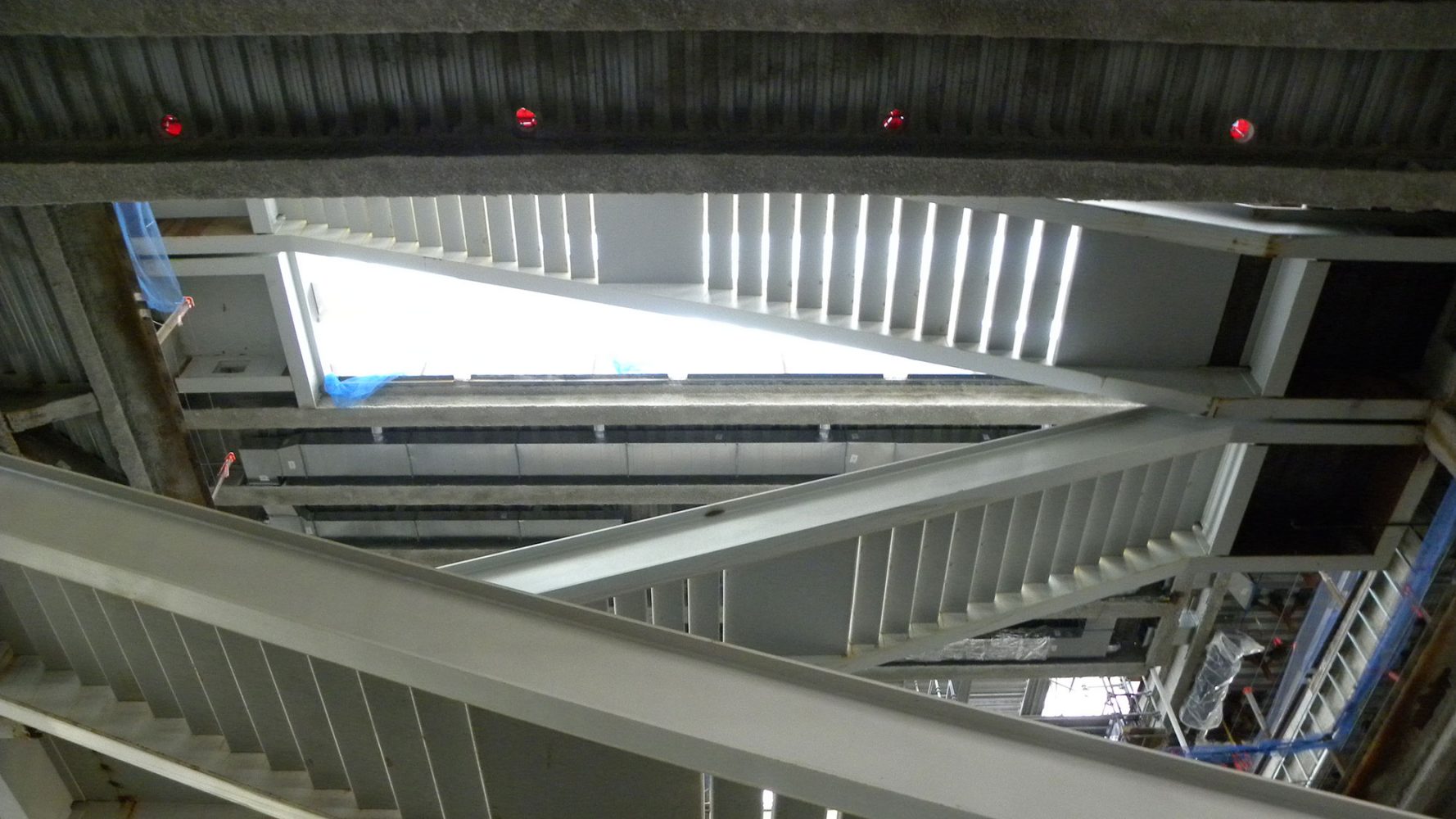

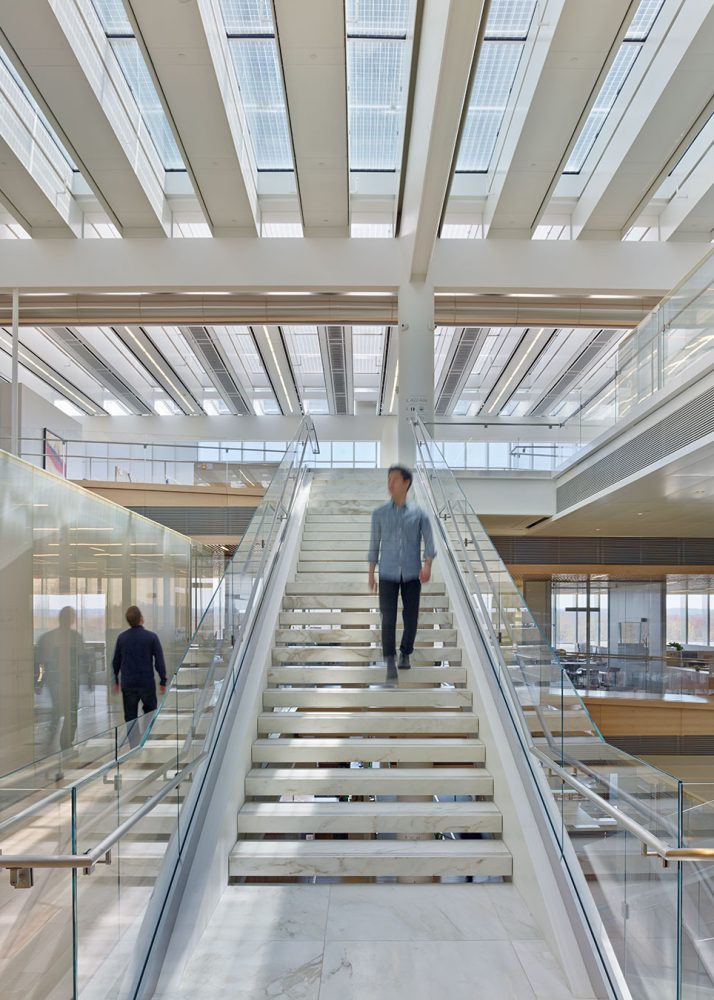

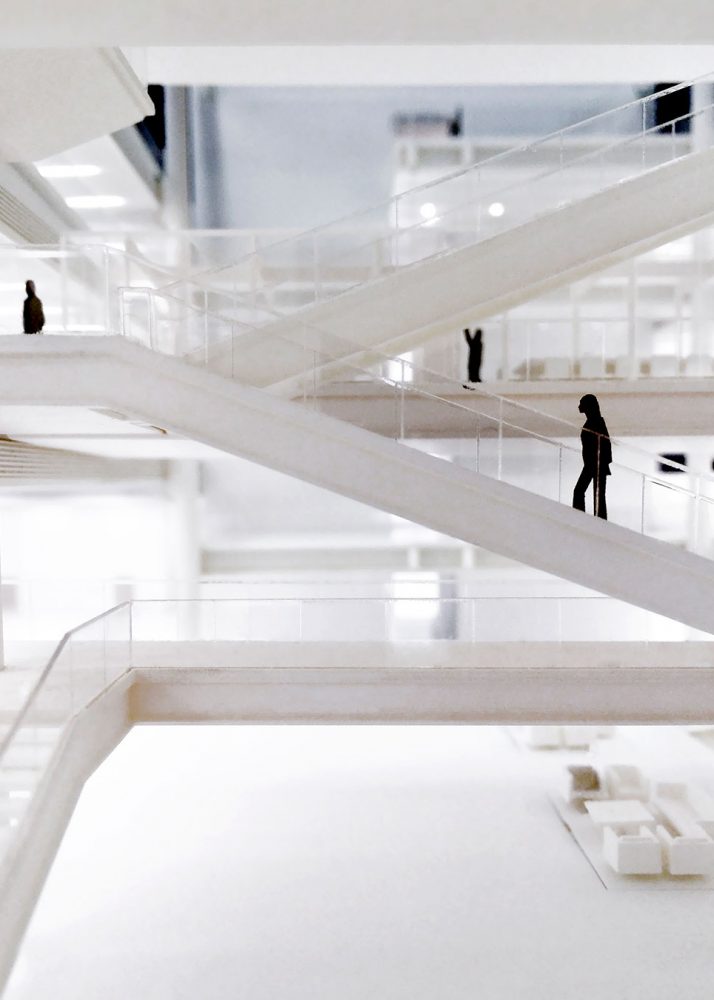

All offices and work spaces are located on one of two interlocking spirals that are connected by sloped walkways, making the transition between levels imperceptible. Stairs and walkways cross the atrium, connecting the two work environments, and allowing occupants alternative circulation pathways between the interlocking spirals. Amenities include a restaurant and a conference facility on the ground floor, small conference rooms, and lounges that seemingly float in the central atrium, and 2 outdoor terraces for social functions at the end of each spiral.

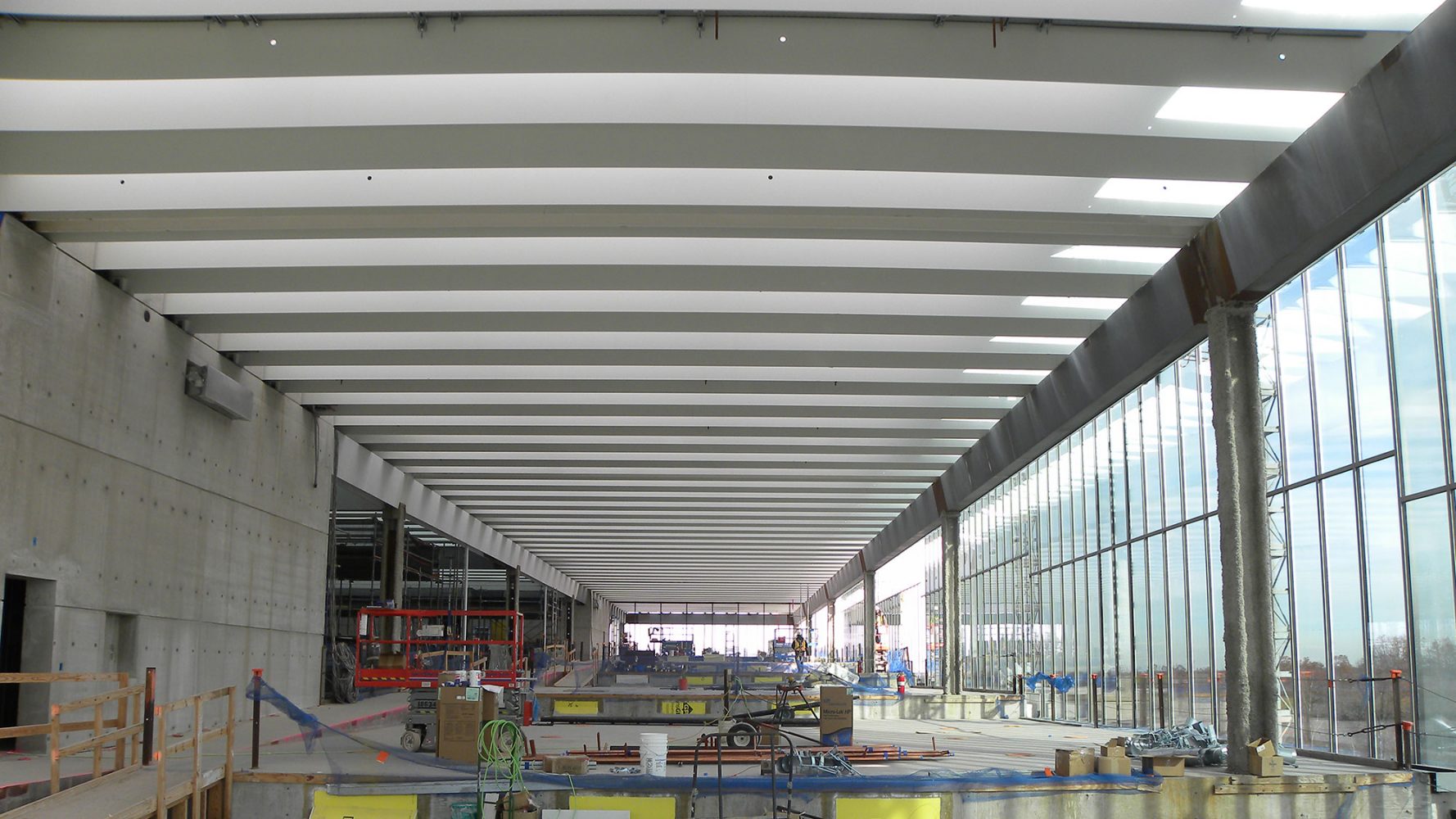

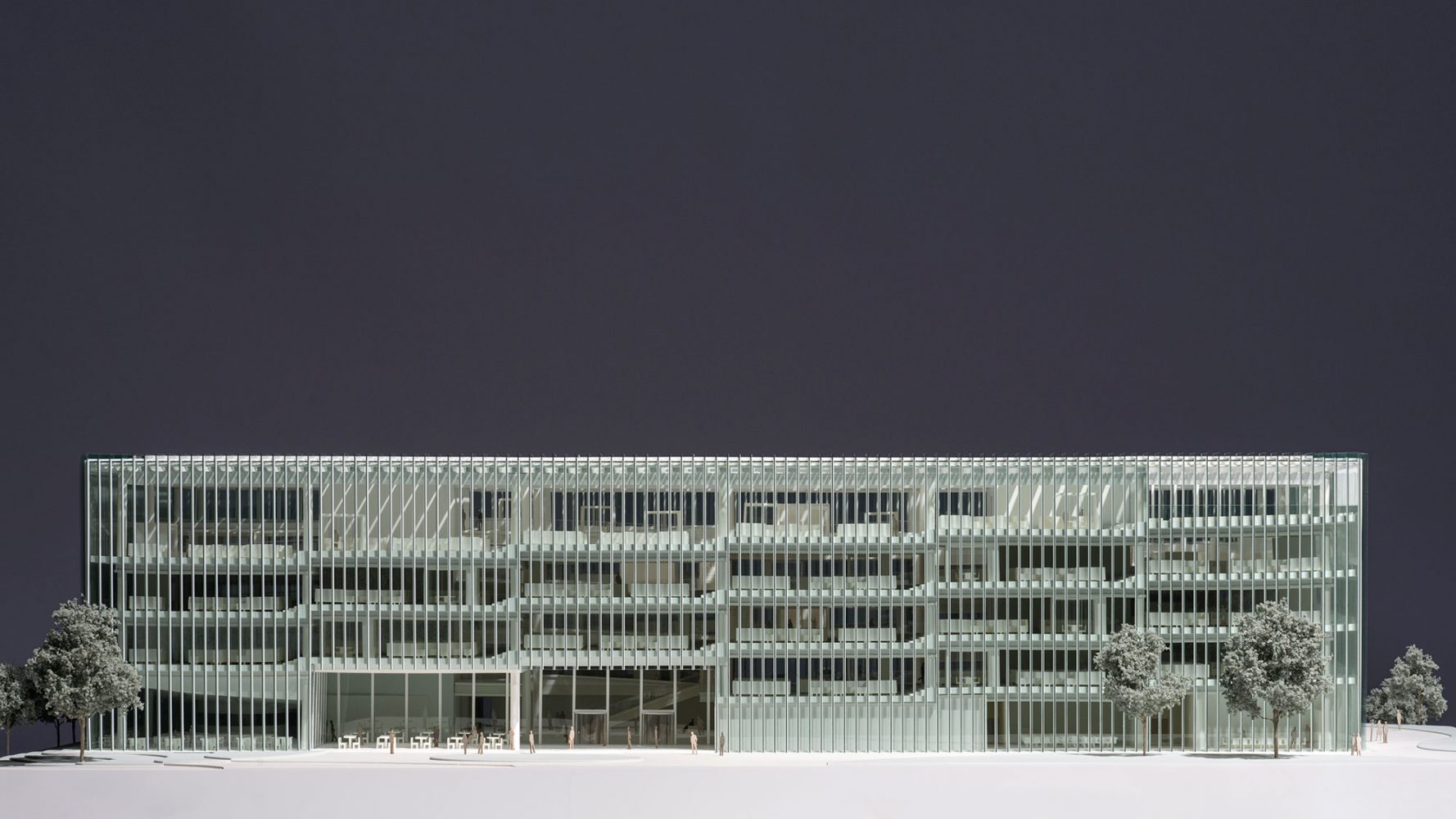

The atrium and the continuous work environment (with its 800 workstations) are entirely daylit with a technologically-advanced, energy-efficient triple-glazed curtain wall façade and a skylight that both envelope the building. Six conference rooms hand from the story above and are entirely clad in glass, with occupants having the option for transparent or translucent walls that can be adjusted for privacy by activating the low-voltage current which alters the visual characteristics of the laminated glass walls.

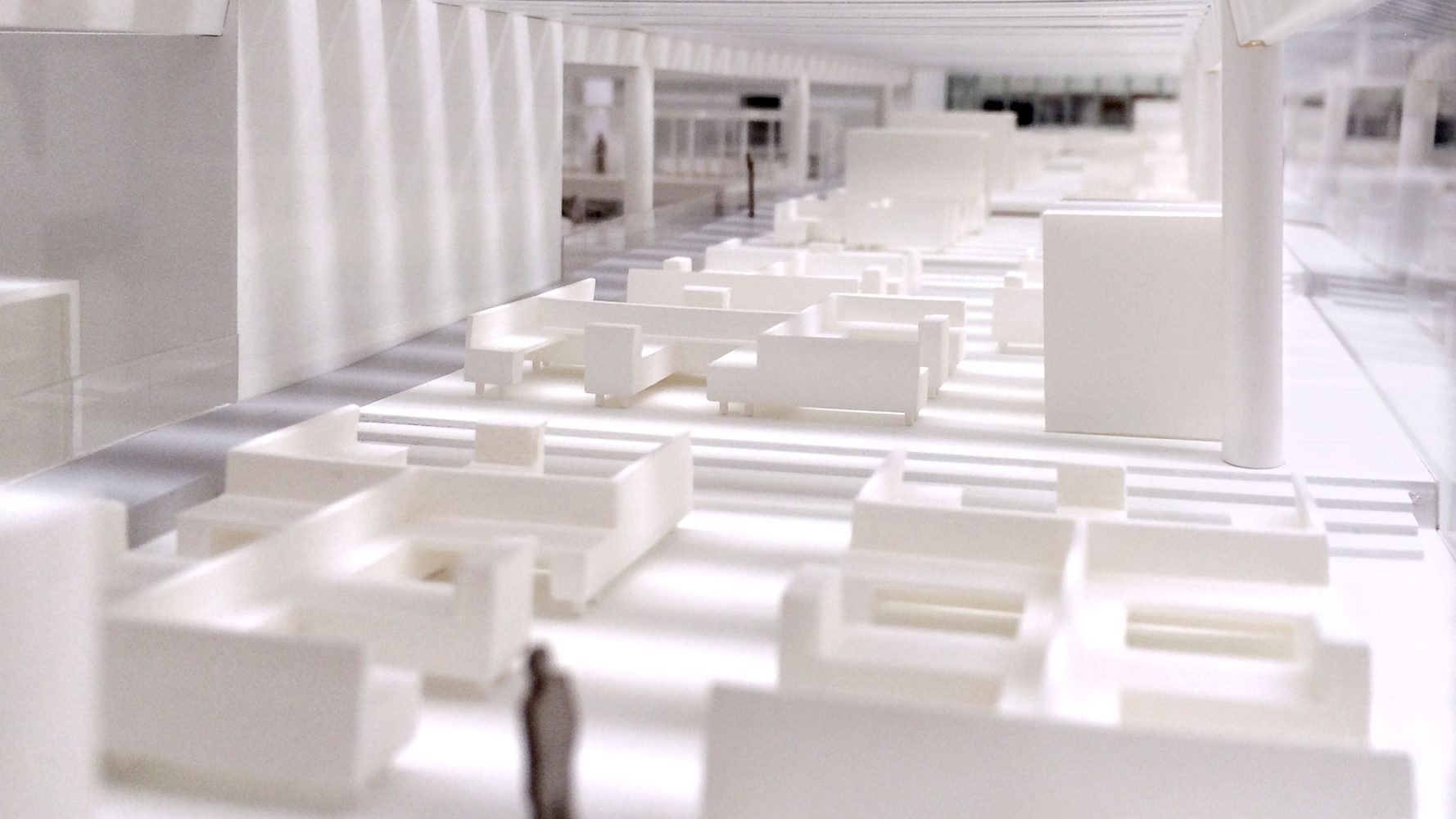

The continuous floor plate allows the building to be both flexible and adaptable, assuring its continued ability to meet the changing and demanding nature of the modern workplace. Viñoly collaborated with Vitra in developing workstations with a partition lower than usual to facilitate visual connectivity among team members.
The ground floor of the building houses amenities that serve the full East Hanover campus, including a cafeteria, a 300-seat divisible lecture hall, a 150-seat conference center, and space for the future installation of a fitness center.

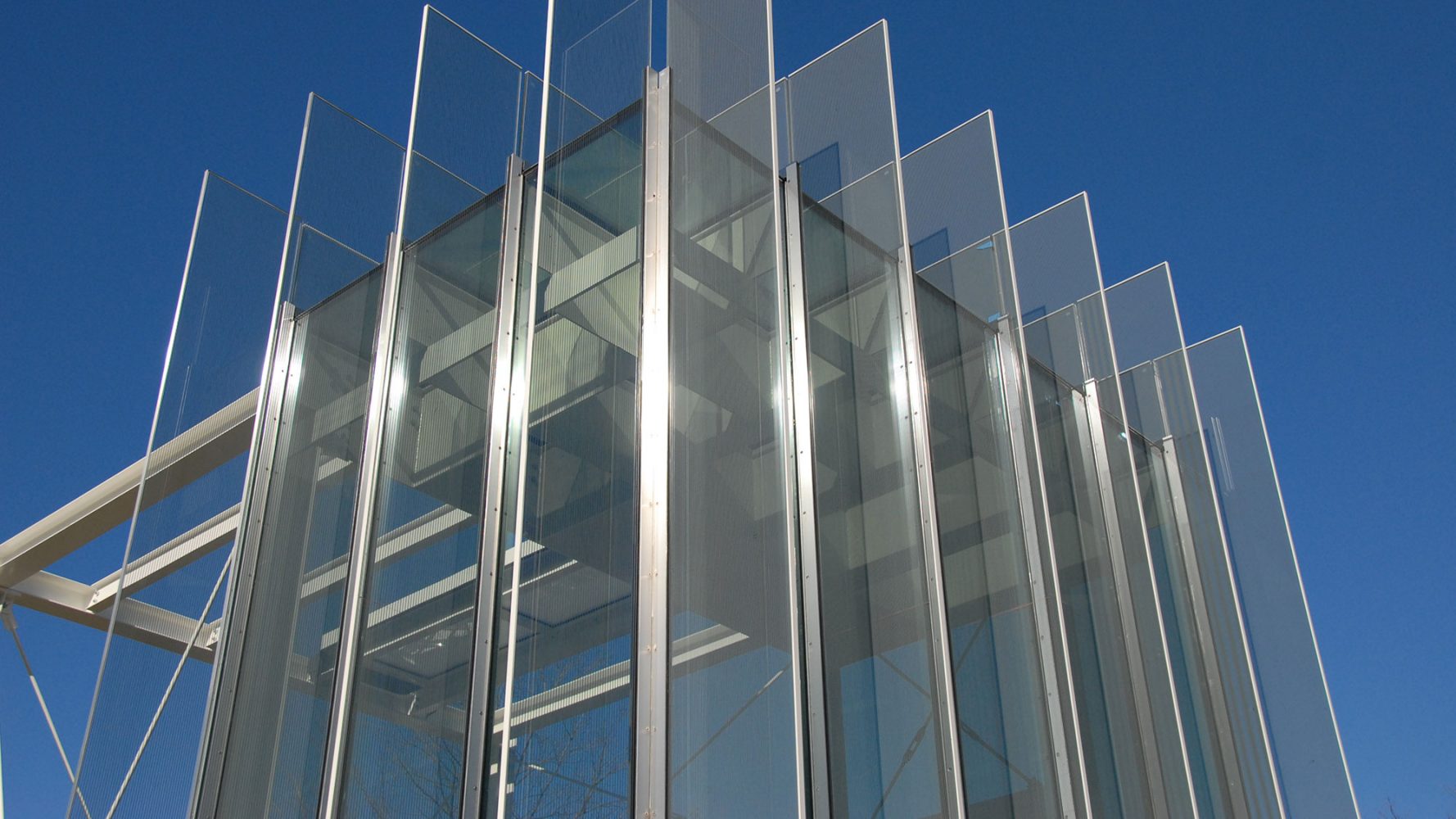

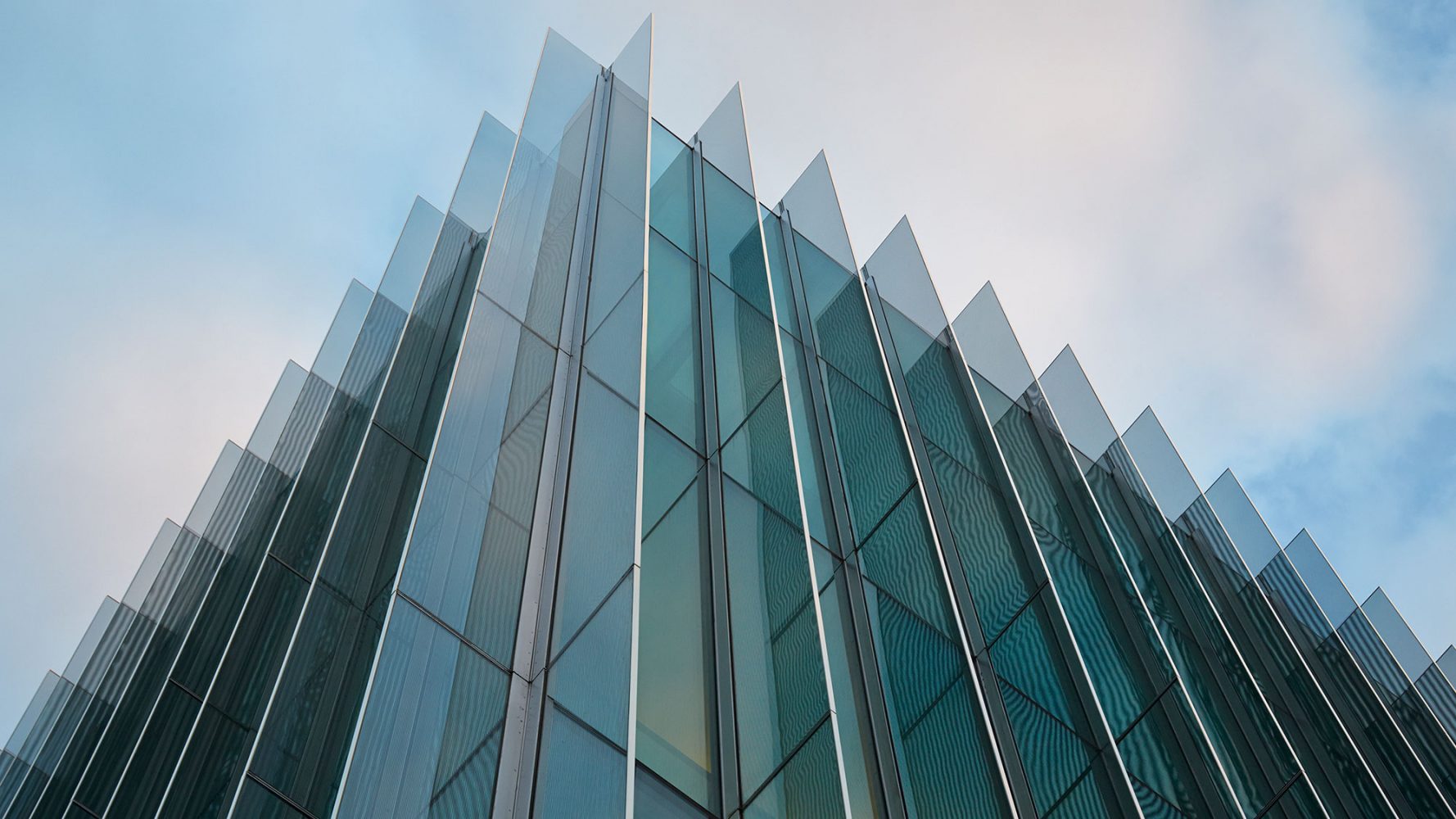

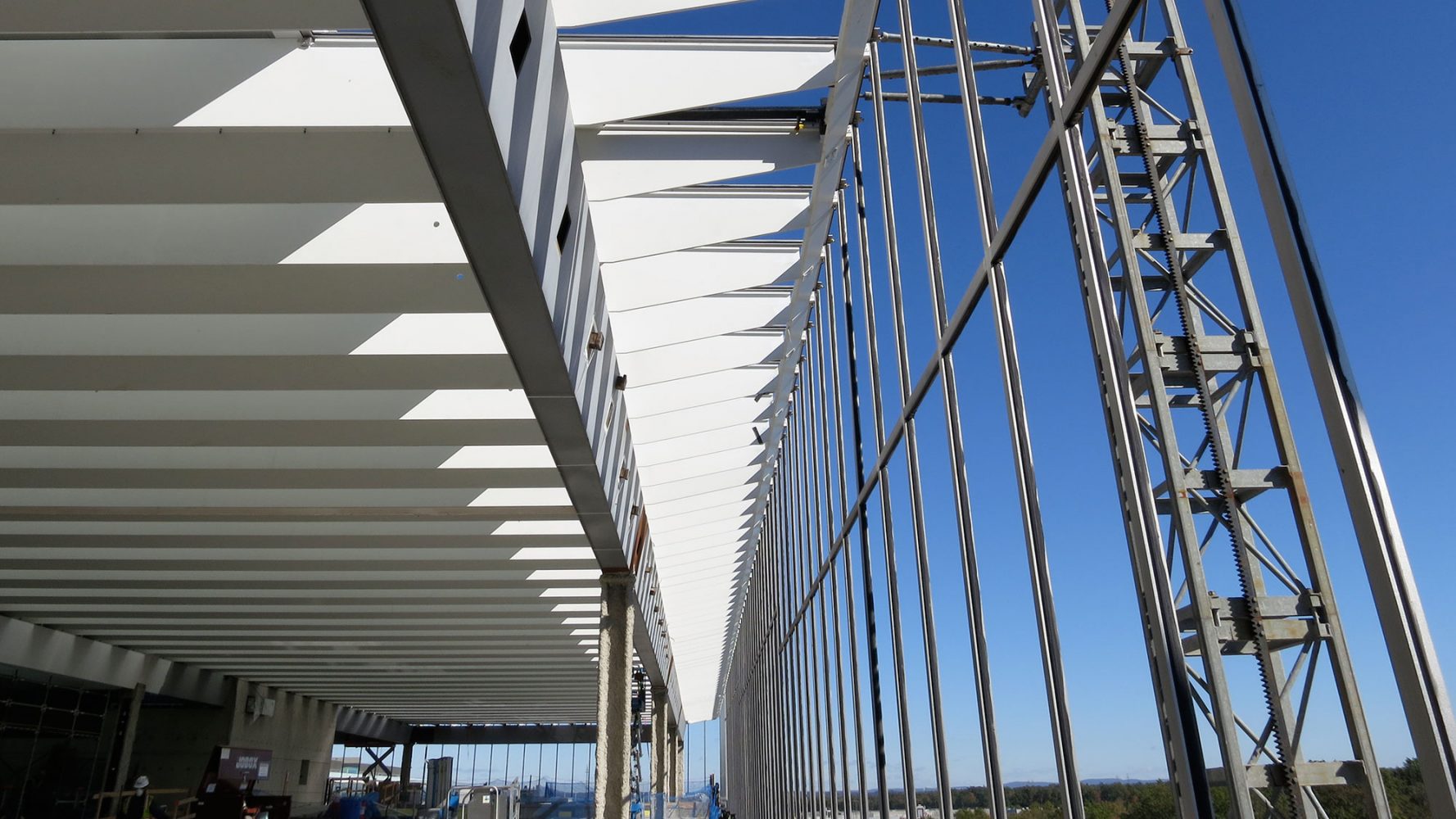

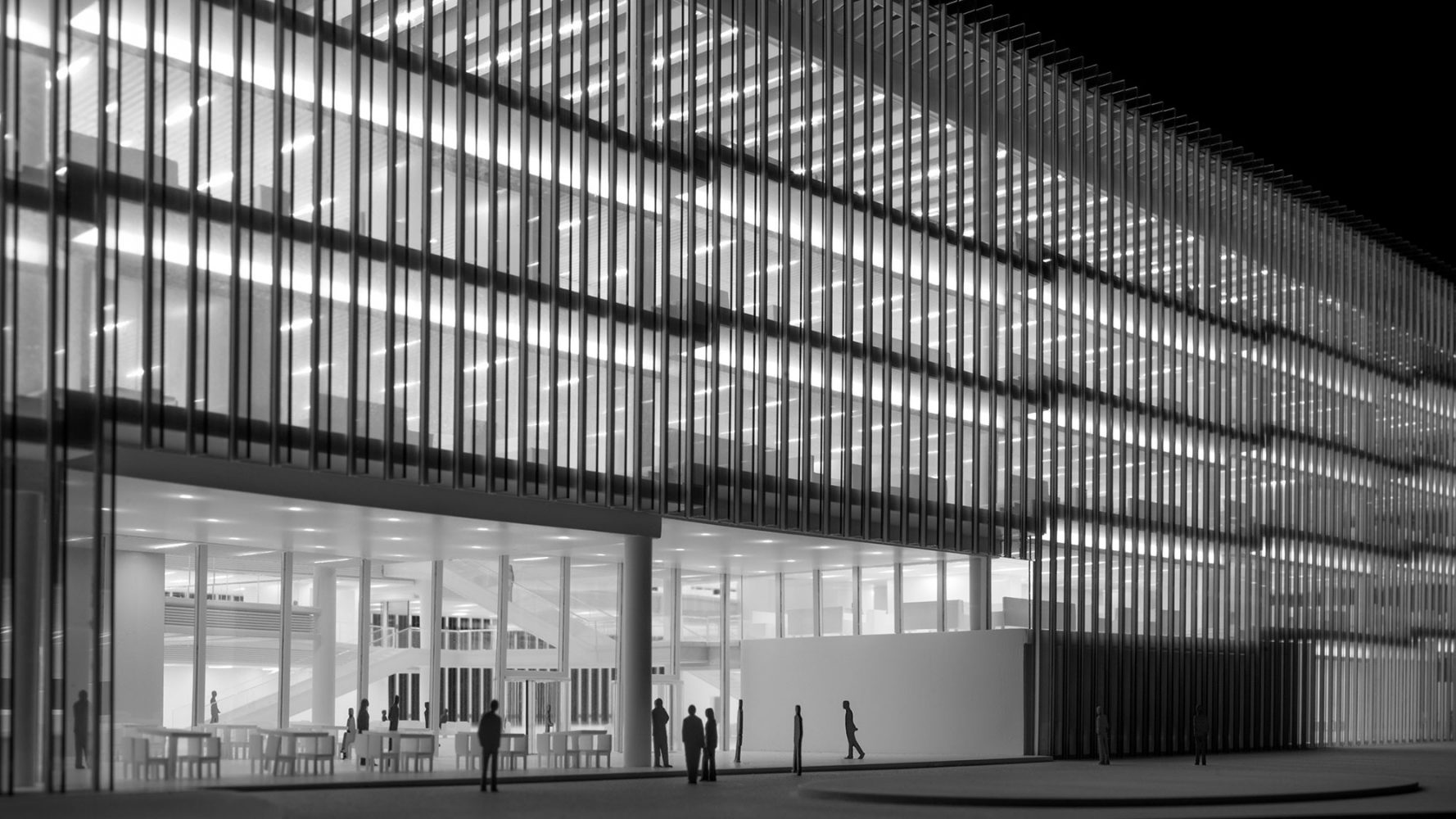

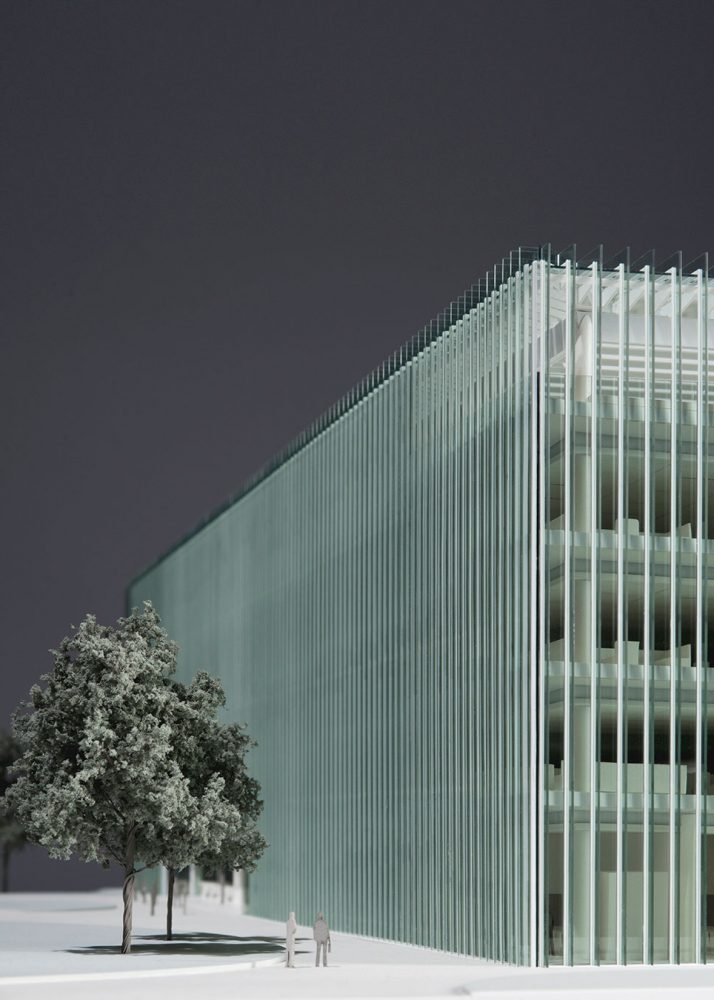

Viñoly designed the building with the highest aspirations for incorporating sustainable technologies and reducing the energy requirements for the project. The building utilizes a chilled-beam mechanical system, dual-energy recovery wheel, a double-insulated glass façade and skylight, structural fins as exterior shades, and perforated photovoltaic cells which cover the roof and filter light into the building.
